15.8ft x 9.45ft - LED Wall Package for Church - Plug n Play
15ft x 9ft LED Wall Package for Church


Our Price: $20,695.00


Stock #: LN3159
Qty:

Description


15.8ft x 9.45ft - LED Wall Package for Church - Plug n Play


This system comes with 15 P5mm tiles indoor tiles, forming a 5×3 panel screen. This medium sized package is a choice selection for a myriad of indoor environments. The P5mm is a perfect fit for churches, houses of worship or large indoor events on a tight budget. Its price point is very competitive – making it very attractive for projects where frugality and practicality are the priority.

Distance is important
If you’re looking to captivate and maintain the attention of all your viewers, without missing a single set of eyes, it is recommended that they be located at least 16 feet away from the screen. Having a 3-cell rectangular shape, the light emitting diode will strike a suitable luminosity thanks to its semiconductor energy driver.


Panel layout
Each panel has 18 modules with a pixel density per panel of 192×192. This provides optimal color and image uniformity when transmitting any audiovisual content in confined spaces. Each of the 15 LED video panels has an excellent aesthetic finish, and are 320 x 160mm in size.


Warranty
The complete package includes 24/7 technical support, and a warranty period of 3 years for the LED wall and all its constituent parts.


Key Features:

  • NovaStar System
  • Full Front Service with magnetic modules
  • Turn-key solution specially designed for churches and houses of worship
  • The simplest and fastest installation (it is not necessary to be an expert to install this led wall)
  • Compatible with optional Ground Support System for freestanding use
  • Technical support available to guide and advise you
  • 3 years warranty included for all parts
  • USA based distribution - In stock now!
  • Our partners can also provide installation services, please ask for details!

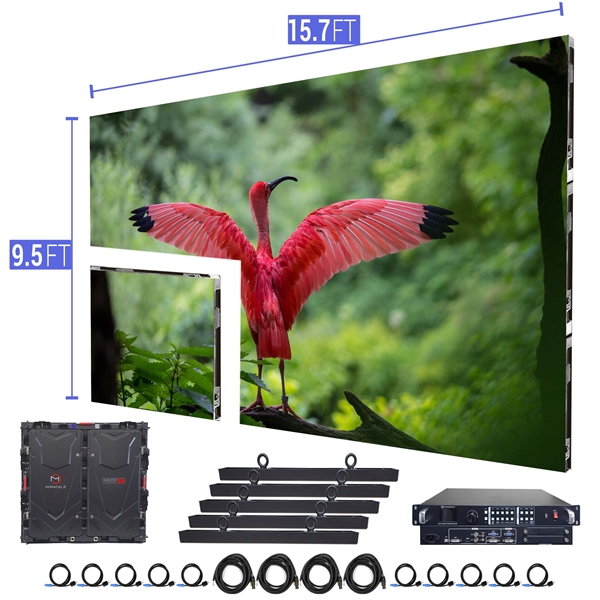

Package Includes:

  • (15) NovaStar P5mm Indoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (5) Hanging bars for rigging
  • (2) Cat6 25ft cable
  • (15) Data Cat6 link cables
  • (15) Locking Power Link Cables
  • (3) Locking Power to Edison Cables
  • Spare parts included

Panel Specs:

  • Pixel Pitch: 5mm
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 192 x 192 per panel
  • Size: 37.8” x 37.8” x 3.5” / 960 x 960 x 88mm
  • Module Quantity: 18 per panel 320 x 160mm
  • Weight: 62lbs. / 30.9Kg

Optical Ratings:

  • Brightness: 3500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 16ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Maximum Power Consumption: 425W/per panel
  • Average Power Consumption: 240W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/16
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)

# P5PNP15X9
