16.4ft x 8.2ft - LED Wall Package Indoor P2.97mm - Plug n Play
16ft x 8ft LED P2.97mm Indoor Wall


Our Price: $28,695.00


Stock #: LN2168
Qty:

Description


16.4ft x 8.2ft - P2.97mm Indoor LED Wall Package - Plug n Play


The 16.4ft x 8.2ft LED Video Wall Screen can and will make work meetings or business expositions incredibly memorable. Its intermediate size is ideal to keep capture and maintain the viewer’s attention. This package is also applicable to a wide variety of scenarios, even for church services or houses of worship. Eco-friendly power savings with an average power usage of 50W and an operational power setting of 100 to 240 V, 50-60Hz.


Panel layout
Each of these 50 tiles are front-serviceable with magnetic modules, which can be easily removed and replaced for maintenance or repair. These modules are manufactured with an LED encapsulation configuration of SMD 2121 3-in-1, making it one of our most dynamic LED panels. Both virtual production studios, and pastor-led live sermons or church events greatly benefit from these screens – this package really is an optimal choice for performance and affordability.


Warranty
The complete package includes 24/7 technical support, and a warranty period of 3 years for the LED wall and all its constituent parts.


Key Features:

  • NovaStar System
  • Full Front Service with magnetic modules
  • Turn-key solution specially designed for churches and houses of worship
  • The simplest and fastest installation (it is not necessary to be an expert to install this led wall)
  • Compatible with optional Ground Support System for freestanding use
  • Technical support available to guide and advise you
  • 3 years warranty included for all parts
  • USA based distribution - In stock now!
  • Our partners can also provide installation services, please ask for details!

Package Includes:

  • (50) NovaStar P2.97mm Indoor LED video tiles

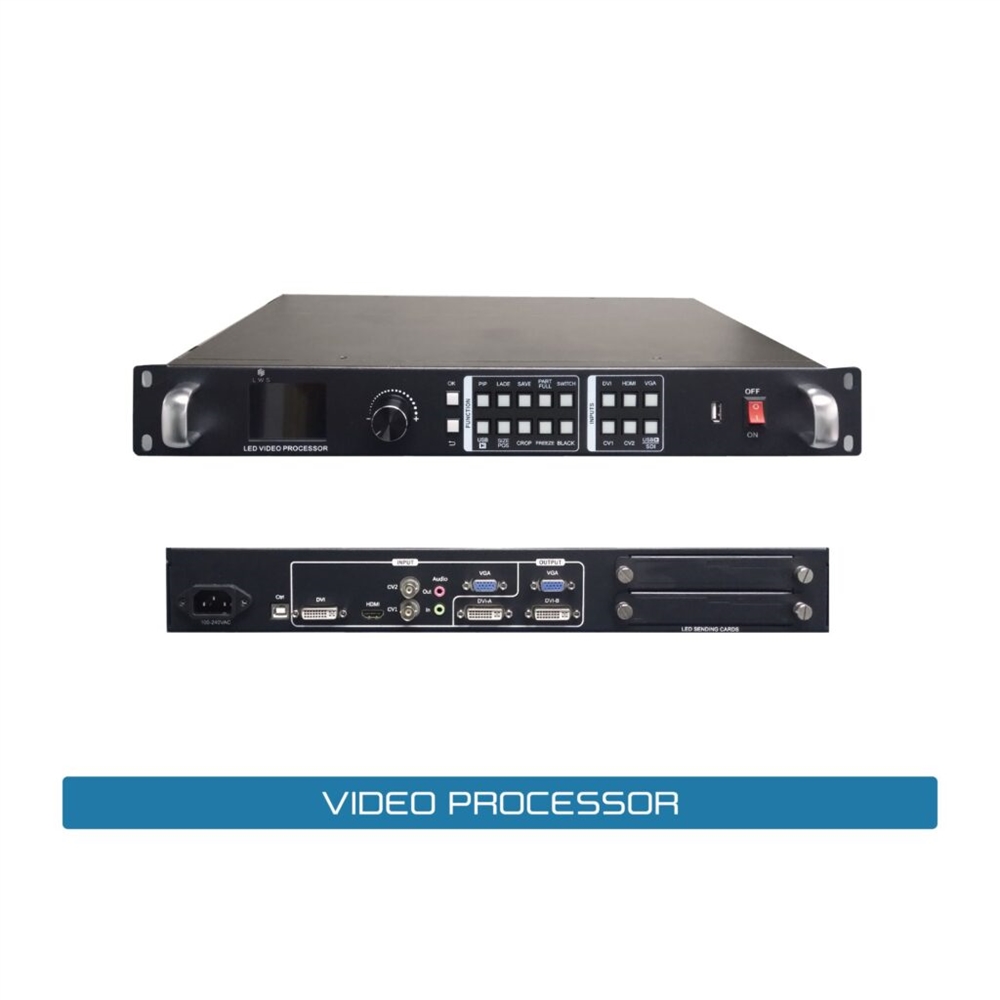

  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (2) NovaStar Mctrl300 sending card

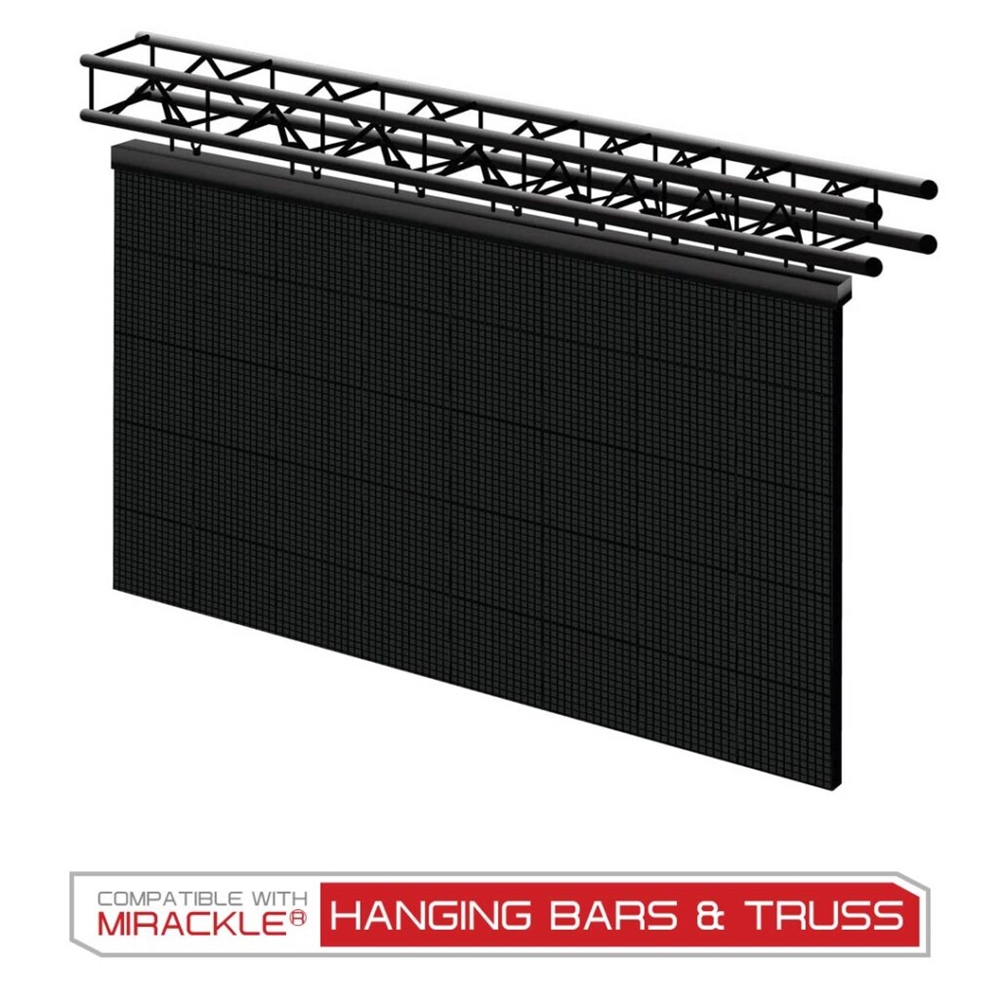

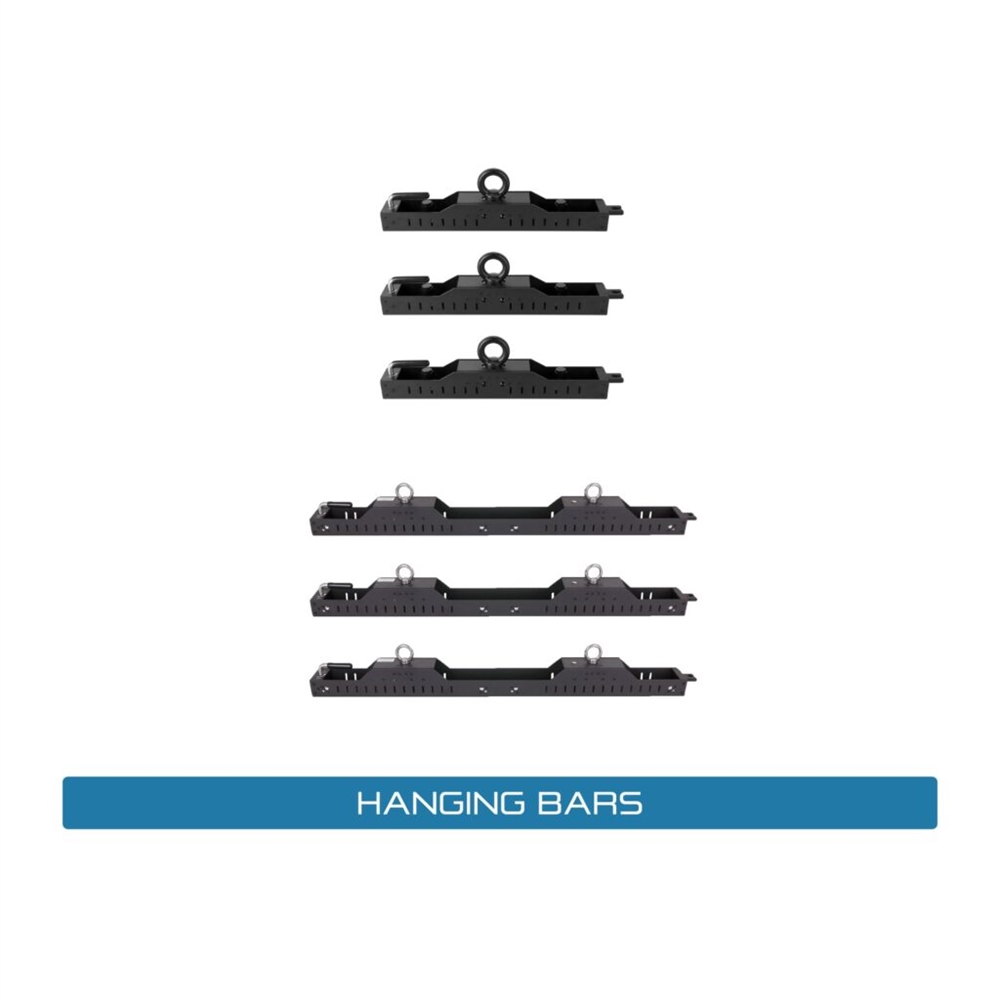

  • (5) Hanging bars for rigging
  • (3) Cat6 25ft cable
  • (50) Data Cat6 link cables
  • (50) Locking Power Link Cables
  • (3) Locking Power to Edison Cables
  • Spare parts included

Panel Specs:

  • Pixel Pitch: 2.97mm
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 168 x 168 per panel
  • Size: 19.68” x 19.68” x 3” / 500 x 500 x 75mm
  • Module Quantity: 4 per panel 250 x 250mm
  • Weight: 18bs. / 8.16Kg

Optical Ratings:

  • Brightness: 1500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 6ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Maximum Power Consumption: 100W/per panel
  • Average Power Consumption: 50W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/28
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)

# P29IN16X8
