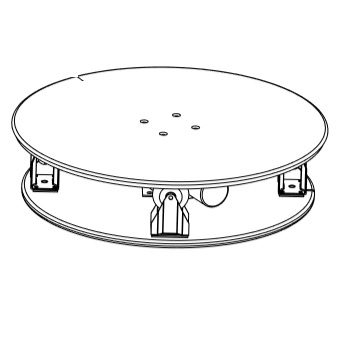

TS-800H Human Model Turntable (Bare Bones Model)
The TS-800H Human Model Turntable has been thoughtfully designed to be used to rotate a person 360 degrees at 2 rotations per minute (ask us about other speed options). This unit is easy to set up at your next trade show - ready to go out right out of the box. Also a great choice for photographing a person for fashion shoots or any other creative needs. It comes with an electrical cord for easy plug-in and a switch for changing direction easily.
The "bare bones model" allows for an identical motor to our TS-800H model without the side "skirt" to save time on production and some money on projects where the unit will not be visible.
- Optional ramps available
- Compression Weight Capacity: 800 lbs. balanced load (362.9 Kg) / 300 lbs. unbalanced load
- Uniquely designed to support the unbalanced weight of individuals standing on the motor platform
- Turntable Diameter: 30 inches
- Standard Rotation Speed: 2 RPM (Other Speeds Available)
- Lead time - 1-2 weeks for fabrication and programming.
TS-800H Specifications
Important Note: Weight capacity is based on a balanced load and an appropriate display size. For more detailed information or if you have any questions on what constitutes appropriate size for a particular unit, please contact us!
Use our
RPM tool to determine the right speed for your project.
